Gallium-doped monocrystalline silicon – Best solution for LeTID and LID in PERC cells

By Dr Fang Hongbin, Product Director, LONGi Solar

Solar has become the lowest cost electricity source in more and more locations globally. According to the latest report by the International Renewable Energy Agency (IRENA), the levelized cost of energy (LCOE) generated by large scale solar plants is around $0.068 per kWh, compared to $0.378 per kWh ten years ago. Between 2018 and 2019 alone, the price dropped by 13.1 percent.

This has been made possible due to the emergence of high efficiency, low cost technologies such as PERC, PERT and bifacial modules. Of these, PERC is a mature technology with a relatively simple process and therefore benefits from low cost of ownership. With PERC technology, a record cell efficiency of 24.06 percent was reached by LONGi (January 2019). While record efficiencies are good, what counts more are conversion efficiency averages in volume production and efficiency stability over time. Technology experts have often pointed out the challenge that PERC technology faces in early days with regard to potential degradation effects. LONGi understood the challenge early on and immediately started research and testing to address the issue of Light Induced Degradation (LID) in PERC cells and modules, in order to prevent degradation issues and offer the best quality modules to its customers.

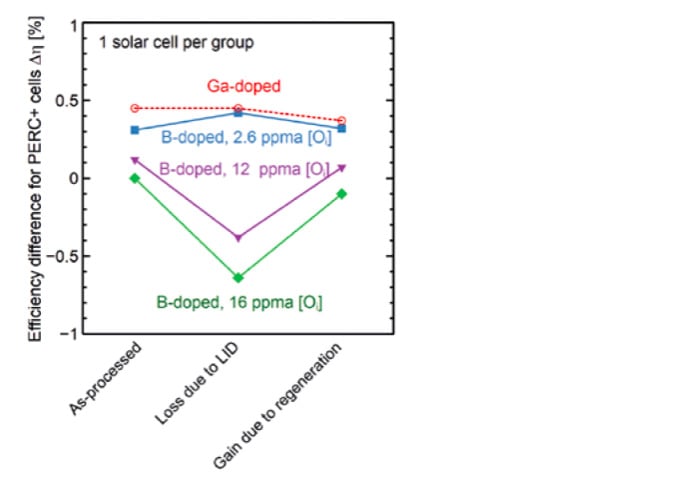

LID is generally considered  to be caused by a boron-oxygen complex  formed under light illumination, which reduces solar cell efficiency and power.  To mitigate LID, we can either reduce oxygen concentration in the wafer or replace Boron (B) with other dopants, such as Gallium (Ga).  Research carried out jointly by ISFH and LONGi has demonstrated Ga-doping and low oxygen wafers are an effective combination, as demonstrated in figure 1.

Figure 1: Impact of Ga-doping and low oxygen on cell efficiency

With process optimization at the ingot pulling and cell manufacturing stage, solar cells made with Ga doped wafers demonstrated an efficiency improvement of 0.06-0.12% (abs.) compared to B doped wafers.

In the last few years, another solar cell/module efficiency degradation phenomenon has caught everyone’s attention – light and elevated temperature induced degradation, aka LeTID.  LeTID is believed to be caused by interaction between metal impurity and hydrogen in wafers.  With Ga doped wafers, it is easier to control LeTID in solar cells, as there is no need to introduce excessive hydrogen in cell processing to mitigate LID as is required for B doped wafers.

Through thorough research and testing, LONGi’s technology experts concluded that LID and LeTID problems could be effectively solved by using gallium-doped monocrystalline silicon wafers in combination with cell process control, without the need for regeneration (light injection or electrical injection) treatment. Compared with a boron-doped silicon wafer, a gallium-doped wafer can improve the efficiency of PERC cells to some extent. There is no boron-oxygen complex in gallium-doped PERC cells, so there is not the usual phenomenon of boron-oxygen LID. In a recent white paper titled “Gallium-doped monocrystalline silicon fully solves the problem of a PERC module’s LID”, released by LONGi, the PV technology provider has summarized its findings on the subject, supported by related studies. Research strongly indicates that application of gallium-doped silicon wafers can effectively mitigate the initial LID from which cells using boron-doped p-type silicon wafers have long suffered.

Key features of LONGi’s test

The LONGi team conducted an LID Test of Gallium-doped and Boron-doped PERC cells. The test used LONGi’s bifacial PERC cells (which had a cell efficiency of about 22.7 per cent). Following is part of the test scheme including the test item, and type and quantity of cells:

1sun, 75°C – 7 boron-doped cells; 10 gallium-doped cells

×10suns, >100°C – 5 gallium-doped cells

Test results

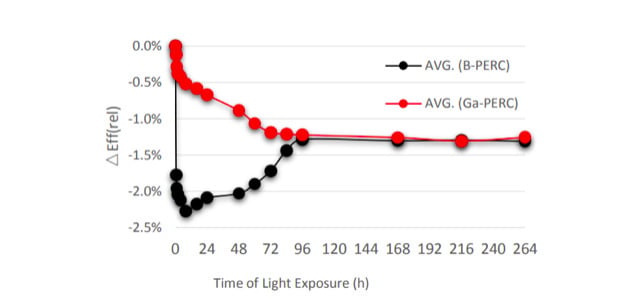

1sun, 75°C: In order to fully reflect the LeTID, LONGi’s mass produced cell adopted a test temperature of 75°C. Figure 2 shows the 264h test results at 1sun, 75°C. The boron-doped cell degrades to a maximum of 2.3 per cent at 8 hours and then recovers to a stable value of 1.3 per cent at 96 hours. The degradation value of gallium-doped cells is basically stable at 96 hours, which is 1.2 per cent, and then slowly degrades to 1.3 per cent (216 hours) before recovering slightly.

Figure 2:

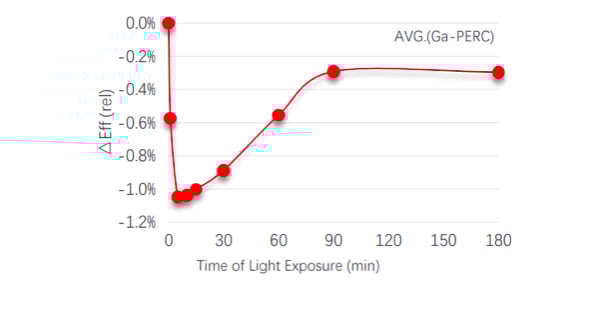

×10suns, >100°C: The LeTID process can be accelerated by adopting ×10suns, >100°C. The test results of gallium-doped PERC cells under this method are shown in Figure 3. Using this test method, the gallium-doped cell also experienced a process of first degrading and then returning to stability. The degradation reached the maximum value of 1.05 per cent at 5 minutes and began to stabilize at a fairly low level of 0.3 per cent at 90 minutes.

Figure 3: Accelerated LID Test Results of Gallium-doped Bifacial PERC Cells

Related studies also support LONGi’s test results

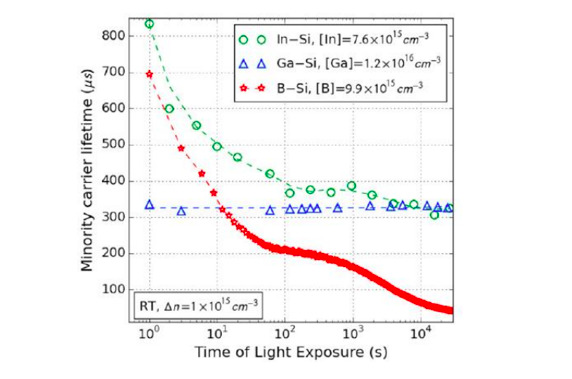

Tine U. Naerland from Azizona State University (along with other researchers) studied the minority carrier lifetime degradation of indium-doped, gallium-doped and boron-doped silicon wafers without impurities at a room temperature of 25°C, as shown in Figure 4.

Figure 4: Minority Carrier Lifetime Degradation of Indium-doped, Gallium-doped and Boron-doped Silicon Wafers at Low-Temperature (25°C) Light Conditions

It can be seen that the minority carrier lifetime of gallium-doped silicon wafers basically maintains a constant value of about 300μs after 104s light exposure, while those of boron-doped and indium-doped silicon wafers degrade continuously and to a significant degree. Therefore, under low-temperature light conditions, the gallium-doped silicon wafer is relatively stable and basically has no degradation. However, in the case of actual outdoor exposure, the working temperature of the cell will exceed 60°C, and the gallium-doped cell will also have a certain degree of LeTID under the action of temperature. Her research clearly supplements LONGi’s test results for the LID of gallium-doped PERC cells and regenerated boron-doped PERC cells at different temperatures.

Another related research has been carried out by Nicholas Grant and John Murphy from the University of Warwick, who recently studied the viability of indium doping and found that its relatively deep acceptor level limits its potential. “Gallium doped silicon has demonstrated a very stable and high lifetime when subject to extended illumination. There have also not been any known detrimental recombination active defects,” said Grant in a recent interaction with a leading solar industry journal. The application of gallium-doped silicon wafers can effectively mitigate the initial LID from which cells using boron-doped p-type silicon wafers have long suffered. Hence, gallium-doped silicon does not require the additional stabilization steps used to mitigate degradation, unlike the boron-doped status quo. The average efficiency of gallium-doped cells is 0.09% higher than that of boron-doped equivalents.

“My team performed stabilization testing and no significant degradation of the PERC solar cells utilizing a gallium-doped silicon substrate was observed,” he said. “In contrast, we did observe significant degradation for an equivalent PERC solar cell with a boron-doped silicon substrate under the same experimental conditions.”


The way forward

LONGi’s testing of gallium-doped PERC cells at different temperatures clearly reflects that, compared with boron-doped cells, gallium-doped cells show significantly lower degradation and this is supported by credible and detailed literature. This further supports the conclusion in one of its previous white papers that the use of gallium-doped silicon wafers can solve the LID problem in PERC technology.

Due to its established potential benefits, LONGi has increased its efforts towards the production of gallium-doped silicon wafers. Over the past six months, we have acquired licenses from Shin-Etsu Chemical to manufacture using gallium-based technologies. Shin-Etsu is considered a pioneer of gallium-doped silicon growth. The technical team at LONGi has been able to solve the problem of high cost of gallium-doped silicon through in-house technological innovation.  Significant improvement on productivity and performance on the Ga doping process has enabled LONGi to deliver Ga doped wafers at similar prices to B doped wafers.

Going forward, LONGi’s R&D team aims to continue studying the characteristics of gallium-doped silicon in order to obtain a reasonable resistivity range and higher doping accuracy to improve the gallium-doping process, from both a cost and quality standpoint. We believe that, with the reduction in degradation, the decrease in cost and increase in reliability, gallium doped silicon solar modules will be more cost-effective in future practical application and will bring better value to our customers.
